Precision BK7 Discs for Optical Clarity and Performance

BK7

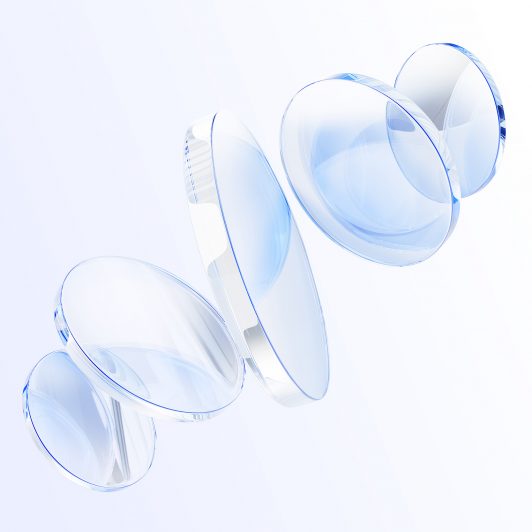

BK7 discs are precision made from an optical glass that delivers superior clarity and light transmission. Known for its low dispersion and high refractive index, BK7 glass is widely used in the production of lenses, prisms, and other optical components to delver high performance. These discs also provide excellent reliability and consistency, making them ideal for both scientific research and industrial applications. Our BK7 discs can also be tailor made to meet specific requirements for optical systems, ensuring clear and precise results.

BK7 windows are used to protect elements and optical enclosures between two environments, they are made from large blocks of stocked glass so can be polished to a wide size range.

For inquiries or to place an order, please reach out to our dedicated sales team.

Buy direct from stock
Get a quote for specific requirements

Specification

  • Material:
  • Schott• N-BK7
  • Dimension Tolerance:
  • NA
  • Thickness Tolerance:
  • ± 0.10mm
  • Edge Finish:
  • Fine ground
  • Surface Quality:
  • 60/40 Scratch/dig
  • Surface Flatness:
  • ≤ 5 Fringes (@633nm)
  • Parallelism:
  • ≤ 3 arc sec

Option B

  • Material:
  • NA
  • Diameter Tolerance:
  • NA
  • Thickness Tolerance:
  • NA
  • Edge Finish:
  • NA
  • Surface Quality:
  • NA
  • Surface Flatness:
  • NA
  • Parallelism:
  • NA
  • Dimensions:
  • Diameters 3mm to 300mm Squares/Rectangles 1mm x 1mm to 300mm x 500mm
  • Thickness Range:
  • 0.10 to 50mm (subject to dimension)
  • Dimension/Thickness:
  • Tol up to 0.02mm
  • Edge Finish:
  • N/A
  • Surface Quality:
  • 80/50 to 20/10 scratch/dig
  • Surface Flatness:
  • 60/40
  • Parallelism:
  • Up to 10 seconds
  • Material Options:
  • N/A
  • Coating Options:
  • AR single layer, multi layer & V coatings
  • Options:
  • Drilled holes, edges polished, bevelled angles, wedges & shapes

Buy direct from stock…

For discount pricing for stock parts over 10+ and volume/OEM quantities, please request a quote, where you can upload drawings and specifications. You can also add the below items to the quote by selecting 11 or more and clicking add to quote.
View Basket
View Quote

Part No.

N-BK725x1

Description

N-BK7 Discs

Diameter

25mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£9.00

Part No.

N-BK725x2

Description

N-BK7 Discs

Diameter

25mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£9.50

Part No.

N-BK725x3

Description

N-BK7 Discs

Diameter

25mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£10.50

Part No.

N-BK750x3

Description

N-BK7 Discs

Diameter

50mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£23.00

Part No.

  • N-BK725x1

Description

  • N-BK7 Discs

Diameter

  • 25mm

Thickness

  • 1mm

Quantity

Unit Price (1-10) INC. VAT

£9.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • N-BK725x2

Description

  • N-BK7 Discs

Diameter

  • 25mm

Thickness

  • 2mm

Quantity

Unit Price (1-10) INC. VAT

£9.50

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • N-BK725x3

Description

  • N-BK7 Discs

Diameter

  • 25mm

Thickness

  • 3mm

Quantity

Unit Price (1-10) INC. VAT

£10.50

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • N-BK750x3

Description

  • N-BK7 Discs

Diameter

  • 50mm

Thickness

  • 3mm

Quantity

Unit Price (1-10) INC. VAT

£23.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF
