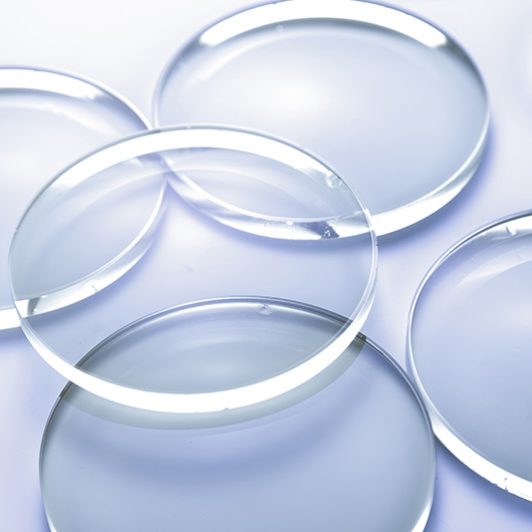

High-Precision Fused Silica Discs for Specialised Applications

noe-glass-discs-1013979736-1

Our UV Fused silica discs have no flourescence and high transmission in the DUV, UV and IR ranges from 180nm to 2000nm. Our optical grade fused silica is virtually bubble free and resistant to chemical and thermal shock. Manufactured to tight tolerances, they are ideal for a variety of specialised fields, including precision optics, laser components and more. Their low thermal expansion and excellent transparency, make it perfect for both routine and advanced technical applications. Our fused silica discs are available in a range of standard sizes to support a wide range of requirements as well as custom made to your specification.

Due to its low co-efficient of thermal expansion, low refractive index and high transmission, fused silica is well suited use in precision optical flat discs. Also being chlorine-free results in outstanding resistance to laser damage. We can offer custom optical coatings to all products.

For inquiries or to place an order, please reach out to our dedicated sales team.

Buy direct from stock
Get a quote for specific requirements

Specification

  • Material:
  • UV Fused Silica windows Spectrosil 2000 ®
  • Dimension Tolerance:
  • NA
  • Thickness Tolerance:
  • ±0.10mm
  • Edge Finish:
  • Fine ground
  • Surface Quality:
  • 40/20 Scratch/Dig
  • Surface Flatness:
  • 1-2 Fringes (@633nm) per 25mm dia
  • Parallelism:
  • ≤ 3 Arc mins

Option B

  • Material:
  • NA
  • Diameter Tolerance:
  • NA
  • Thickness Tolerance:
  • NA
  • Edge Finish:
  • NA
  • Surface Quality:
  • NA
  • Surface Flatness:
  • NA
  • Parallelism:
  • NA
  • Dimensions:
  • Diameters 3mm to 350mm
    Squares/Rectangles 5mm to 100mm
  • Thickness Range:
  • 0.1mm to 50mm (subject to dimension)
  • Dimension/Thickness:
  • Tol to 0.02mm
  • Edge Finish:
  • Ground or polished
  • Surface Quality:
  • 80/50 to 20/10 scratch/dig
  • Surface Flatness:
  • Up to lambda 10(@633nm)
  • Parallelism:
  • Up to 10 seconds
  • Material Options:
  • Corning HPFS 7980, KrF & ArF grade, commercial grade UV Silica & Heraeus Spectrosil 2000®, Heraeus Suprasil® I,
    2 grade A & B, 311, 312, 3001, 3002
  • Coating Options:
  • AR coatings from 193nm - 2000nm
  • Options:
  • Wedges, shapes, drilled holes, edges polished & bevelled angles

Buy direct from stock…

For discount pricing for stock parts over 10+ and volume/OEM quantities, please request a quote, where you can upload drawings and specifications. You can also add the below items to the quote by selecting 11 or more and clicking add to quote.
View Basket
View Quote

Part No.

SPEC3.5X1

Description

Fused Silica Discs

Diameter

3.5mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£11.50

Part No.

SPEC3.5X2

Description

Fused Silica Discs

Diameter

3.5mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£11.70

Part No.

SPEC4X1

Description

Fused Silica Discs

Diameter

4mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£11.20

Part No.

SPEC5X1

Description

Fused Silica Discs

Diameter

5mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£9.00

Part No.

SPEC5X2

Description

Fused Silica Discs

Diameter

5mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£10.00

Part No.

SPEC6X1

Description

Fused Silica Discs

Diameter

6mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£13.00

Part No.

SPEC7X1

Description

Fused Silica Discs

Diameter

8mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£13.50

Part No.

SPEC10X1

Description

Fused Silica Discs

Diameter

10mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£8.50

Part No.

SPEC10X2

Description

Fused Silica Discs

Diameter

10mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£9.00

Part No.

SPEC10X3

Description

Fused Silica Discs

Diameter

10mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£9.50

Part No.

SPEC12X1

Description

Fused Silica Discs

Diameter

12mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£10.50

Part No.

SPEC12X2

Description

Fused Silica Discs

Diameter

12mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£12.50

Part No.

SPEC12X3

Description

Fused Silica Discs

Diameter

12mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£13.50

Part No.

SPEC12.5X1

Description

Fused Silica Discs

Diameter

12.5mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£13.50

Part No.

SPEC12.5X2

Description

Fused Silica Discs

Diameter

12.5mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£13.90

Part No.

SPEC13X1

Description

Fused Silica Discs

Diameter

13mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£13.20

Part No.

SPEC13X2

Description

Fused Silica Discs

Diameter

13mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£13.50

Part No.

SPEC15X1

Description

Fused Silica Discs

Diameter

15mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£13.30

Part No.

SPEC15X2

Description

Fused Silica Discs

Diameter

15mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£13.90

Part No.

SPEC15X3

Description

Fused Silica Discs

Diameter

15mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£10.40

Part No.

SPEC15X6

Description

Fused Silica Discs

Diameter

15mm

Thickness

6mm

Quantity

Unit Price (1-10) INC. VAT

£21.50

Part No.

SPEC20X1

Description

Fused Silica Discs

Diameter

20mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£13.75

Part No.

SPEC20X2

Description

Fused Silica Discs

Diameter

20mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£15.70

Part No.

SPEC20X3

Description

Fused Silica Discs

Diameter

20mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£16.75

Part No.

SPEC25X1

Description

Fused Silica Discs

Diameter

25mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£16.50

Part No.

SPEC25X2

Description

Fused Silica Discs

Diameter

25mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£14.70

Part No.

SPEC25X3

Description

Fused Silica Discs

Diameter

25mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£19.20

Part No.

SPEC25X6

Description

Fused Silica Discs

Diameter

25mm

Thickness

6mm

Quantity

Unit Price (1-10) INC. VAT

£26.00

Part No.

SPEC25X10

Description

Fused Silica Discs

Diameter

25mm

Thickness

10mm

Quantity

Unit Price (1-10) INC. VAT

£39.50

Part No.

SPEC25.4X1

Description

Fused Silica Discs

Diameter

25.4mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£24.00

Part No.

SPEC25.4X2

Description

Fused Silica Discs

Diameter

25.4mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£24.80

Part No.

SPEC30X1

Description

Fused Silica Discs

Diameter

30mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£27.30

Part No.

SPEC30X2

Description

Fused Silica Discs

Diameter

30mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£29.40

Part No.

SPEC30X3

Description

Fused Silica Discs

Diameter

30mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£30.40

Part No.

SPEC35X1

Description

Fused Silica Discs

Diameter

35mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£30.40

Part No.

SPEC35X2

Description

Fused Silica Discs

Diameter

35mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£31.90

Part No.

SPEC35X3

Description

Fused Silica Discs

Diameter

35mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£35.00

Part No.

SPEC40X1

Description

Fused Silica Discs

Diameter

40mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£22.00

Part No.

SPEC40X2

Description

Fused Silica Discs

Diameter

40mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£27.90

Part No.

SPEC45X2

Description

Fused Silica Discs

Diameter

45mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£36.00

Part No.

SPEC50X1

Description

Fused Silica Discs

Diameter

50mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£36.00

Part No.

SPEC50X2

Description

Fused Silica Discs

Diameter

50mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£38.00

Part No.

SPEC50X3

Description

Fused Silica Discs

Diameter

50mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£39.00

Part No.

SPEC50X6

Description

Fused Silica Discs

Diameter

50mm

Thickness

6mm

Quantity

Unit Price (1-10) INC. VAT

£45.00

Part No.

SPEC50X8

Description

Fused Silica Discs

Diameter

50mm

Thickness

8mm

Quantity

Unit Price (1-10) INC. VAT

£72.00

Part No.

SPEC50X10

Description

Fused Silica Discs

Diameter

50mm

Thickness

10mm

Quantity

Unit Price (1-10) INC. VAT

£105.00

Part No.

SPEC60X2

Description

Fused Silica Discs

Diameter

60mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£75.00

Part No.

SPEC60C3

Description

Fused Silica Discs

Diameter

60mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£77.00

Part No.

SPEC60X6

Description

Fused Silica Discs

Diameter

60mm

Thickness

6mm

Quantity

Unit Price (1-10) INC. VAT

£81.00

Part No.

SPEC70X3

Description

Fused Silica Discs

Diameter

70mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£99.00

Part No.

SPEC75X1.1

Description

Fused Silica Discs

Diameter

75mm

Thickness

1.1mm

Quantity

Unit Price (1-10) INC. VAT

£111.00

Part No.

SPEC75X2

Description

Fused Silica Discs

Diameter

75mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£105.00

Part No.

SPEC75X3

Description

Fused Silica Discs

Diameter

75mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£110.00

Part No.

SPEC75X6

Description

Fused Silica Discs

Diameter

75mm

Thickness

6mm

Quantity

Unit Price (1-10) INC. VAT

£118.00

Part No.

SPEC80X3

Description

Fused Silica Discs

Diameter

80mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£123.00

Part No.

SPEC100X1.1

Description

Fused Silica Discs

Diameter

100mm

Thickness

1.1mm

Quantity

Unit Price (1-10) INC. VAT

£168.00

Part No.

SPEC100X2

Description

Fused Silica Discs

Diameter

100mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£173.00

Part No.

SPEC100X3

Description

Fused Silica Discs

Diameter

100mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£186.00

Part No.

SPEC100X6

Description

Fused Silica Discs

Diameter

100mm

Thickness

6mm

Quantity

Unit Price (1-10) INC. VAT

£199.50

Part No.

SPEC100X8

Description

Fused Silica Discs

Diameter

100mm

Thickness

8mm

Quantity

Unit Price (1-10) INC. VAT

£218.00

Part No.

SPEC150X3

Description

Fused Silica Discs

Diameter

150mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£240.00

Part No.

SPEC150X6

Description

Fused Silica Discs

Diameter

150mm

Thickness

6mm

Quantity

Unit Price (1-10) INC. VAT

£297.50

Part No.

  • SPEC100X1.1

Description

  • Fused Silica Discs

Diameter

  • 100mm

Thickness

  • 1.1mm

Quantity

Unit Price (1-10) INC. VAT

£168.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC100X2

Description

  • Fused Silica Discs

Diameter

  • 100mm

Thickness

  • 2mm

Quantity

Unit Price (1-10) INC. VAT

£173.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC100X3

Description

  • Fused Silica Discs

Diameter

  • 100mm

Thickness

  • 3mm

Quantity

Unit Price (1-10) INC. VAT

£186.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC100X6

Description

  • Fused Silica Discs

Diameter

  • 100mm

Thickness

  • 6mm

Quantity

Unit Price (1-10) INC. VAT

£199.50

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC100X8

Description

  • Fused Silica Discs

Diameter

  • 100mm

Thickness

  • 8mm

Quantity

Unit Price (1-10) INC. VAT

£218.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC10X1

Description

  • Fused Silica Discs

Diameter

  • 10mm

Thickness

  • 1mm

Quantity

Unit Price (1-10) INC. VAT

£8.50

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC10X2

Description

  • Fused Silica Discs

Diameter

  • 10mm

Thickness

  • 2mm

Quantity

Unit Price (1-10) INC. VAT

£9.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC10X3

Description

  • Fused Silica Discs

Diameter

  • 10mm

Thickness

  • 3mm

Quantity

Unit Price (1-10) INC. VAT

£9.50

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC12.5X1

Description

  • Fused Silica Discs

Diameter

  • 12.5mm

Thickness

  • 1mm

Quantity

Unit Price (1-10) INC. VAT

£13.50

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC12.5X2

Description

  • Fused Silica Discs

Diameter

  • 12.5mm

Thickness

  • 2mm

Quantity

Unit Price (1-10) INC. VAT

£13.90

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC12X1

Description

  • Fused Silica Discs

Diameter

  • 12mm

Thickness

  • 1mm

Quantity

Unit Price (1-10) INC. VAT

£10.50

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC12X2

Description

  • Fused Silica Discs

Diameter

  • 12mm

Thickness

  • 2mm

Quantity

Unit Price (1-10) INC. VAT

£12.50

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC12X3

Description

  • Fused Silica Discs

Diameter

  • 12mm

Thickness

  • 3mm

Quantity

Unit Price (1-10) INC. VAT

£13.50

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC13X1

Description

  • Fused Silica Discs

Diameter

  • 13mm

Thickness

  • 1mm

Quantity

Unit Price (1-10) INC. VAT

£13.20

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC13X2

Description

  • Fused Silica Discs

Diameter

  • 13mm

Thickness

  • 2mm

Quantity

Unit Price (1-10) INC. VAT

£13.50

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • SPEC150X3

Description

  • Fused Silica Discs

Diameter

  • 150mm

Thickness

  • 3mm

Quantity

Unit Price (1-10) INC. VAT

£240.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Similar Products

Navigation

Get in touch

Newcastle Optical Engineering
Unit 1B, Buddle Industrial Estate
Benton Way, Wallsend,
Tyne & Wear NE28 6DL

Copyright © Newcastle Optical Engineering 2024

Website design and development by Thrive

Express order dispatch within 20 days.

Contact Us
