Premium Fused Quartz for Industrial and Scientific Use

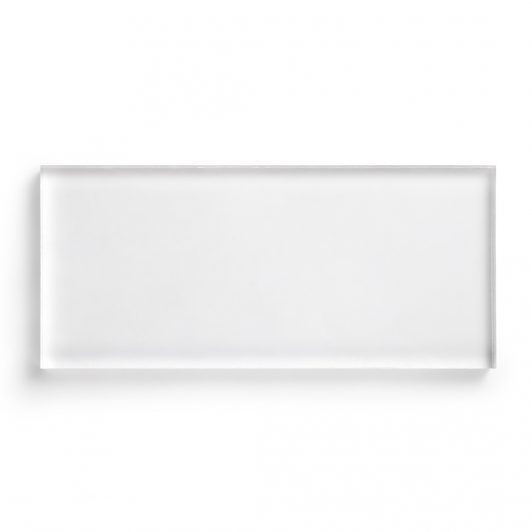

Fused Quartz Plates

Our fused quartz plates are precision manufactured to deliver outstanding temperature stability up to 1050°C along with high levels of durability and a UV transmission range of 260nm to in excess of 2000nm. Made from high grade fused quartz, they offer high resistance to chemical exposure, and mechanical pressure in addition. With consistent optical and structural performance, these plates are trusted across scientific, industrial and advanced manufacturing applications where exact standards are essential.

Newcastle Optical Engineering supply quartz plates in a range of stock sizes. Custom options are available for all other sizer requirements.

For inquiries or to place an order, please reach out to our dedicated sales team.

Buy direct from stock
Get a quote for specific requirements

Specification

  • Material:
  • Fused Quartz
  • Dimension Tolerance:
  • NA
  • Thickness Tolerance:
  • +/- 0.10mm
  • Edge Finish:
  • Fine ground
  • Surface Quality:
  • 60/40 Scratch/Dig
  • Surface Flatness:
  • 3-5 Fringes (@633nm) per 25mm x 25mm
  • Parallelism:
  • ≤ 5 Arc mins

Option B

  • Material:
  • NA
  • Diameter Tolerance:
  • NA
  • Thickness Tolerance:
  • NA
  • Edge Finish:
  • NA
  • Surface Quality:
  • NA
  • Surface Flatness:
  • NA
  • Parallelism:
  • NA
  • Dimensions:
  • Squares/Rectangles 1mm x 1mm to 500mm x 500mm
  • Thickness Range:
  • 0.10mm to 50mm (Subject to dimension)
  • Dimension/Thickness:
  • Tol up to 0.02mm
  • Edge Finish:
  • Ground or polished
  • Surface Quality:
  • 80/50 to 20/10 scratch/dig
  • Surface Flatness:
  • Up to lambda 10 (@633nm)
  • Parallelism:
  • Up to 10 seconds
  • Material Options:
  • HOQ310, Commercial Grade Quartz, Infrasil & GE124
  • Coating Options:
  • AR coatings
  • Options:
  • Edges polished, wedges, shapes, drilled holes & bevelled angles

Buy direct from stock…

For discount pricing for stock parts over 10+ and volume/OEM quantities, please request a quote, where you can upload drawings and specifications. You can also add the below items to the quote by selecting 11 or more and clicking add to quote.
View Basket
View Quote

Part No.

QP10X10X1

Description

Fused Quartz Plate

Dimension

10mm X 10mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£7.90

Part No.

QP12X12X1

Description

Fused Quartz Plate

Dimension

12mm X 12mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£8.10

Part No.

QP15X15X1

Description

Fused Quartz Plate

Dimension

15mm X 15mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£8.50

Part No.

QP20X20X1

Description

Fused Quartz Plate

Dimension

20mm X 20mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£9.00

Part No.

QP25X25X1

Description

Fused Quartz Plate

Dimension

25mm X 25mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£9.20

Part No.

QP25X25X2

Description

Fused Quartz Plate

Dimension

25mm X 25mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£14.00

Part No.

QP25X25X3

Description

Fused Quartz Plate

Dimension

25mm X 25mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£16.50

Part No.

QP25X25X4

Description

Fused Quartz Plate

Dimension

25mm X 25mm

Thickness

4mm

Quantity

Unit Price (1-10) INC. VAT

£17.90

Part No.

QP30X30X1

Description

Fused Quartz Plate

Dimension

30mm X 30mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£20.00

Part No.

QP50X50X0.5

Description

Fused Quartz Plate

Dimension

50mm X 50mm

Thickness

0.5mm

Quantity

Unit Price (1-10) INC. VAT

£32.50

Part No.

QP50X50X1

Description

Fused Quartz Plate

Dimension

50mm X 50mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£23.50

Part No.

QP50X50X2

Description

Fused Quartz Plate

Dimension

50mm X 50mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£25.00

Part No.

QP50X50X3

Description

Fused Quartz Plate

Dimension

50mm X 50mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£27.50

Part No.

QP75X75X1

Description

Fused Quartz Plate

Dimension

75mm X 75mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£44.00

Part No.

QP75X75X3

Description

Fused Quartz Plate

Dimension

75mm X 75mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£47.00

Part No.

QP100X100X1

Description

Fused Quartz Plate

Dimension

100mm X 100mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£79.00

Part No.

QP100X100X2

Description

Fused Quartz Plate

Dimension

100mm X 100mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£76.00

Part No.

QP100X100X3

Description

Fused Quartz Plate

Dimension

100mm X 100mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£80.00

Part No.

QP150X150X1

Description

Fused Quartz Plate

Dimension

150mm X 150mm

Thickness

1mm

Quantity

Unit Price (1-10) INC. VAT

£112.00

Part No.

QP150X150X2

Description

Fused Quartz Plate

Dimension

150mm X 150mm

Thickness

2mm

Quantity

Unit Price (1-10) INC. VAT

£100.00

Part No.

QP150X150X3

Description

Fused Quartz Plate

Dimension

150mm X 150mm

Thickness

3mm

Quantity

Unit Price (1-10) INC. VAT

£119.00

Part No.

QP150X150X4

Description

Fused Quartz Plate

Dimension

150mm X 150mm

Thickness

4mm

Quantity

Unit Price (1-10) INC. VAT

£160.00

Part No.

QP150X150X5

Description

Fused Quartz Plate

Dimension

150mm X 150mm

Thickness

5mm

Quantity

Unit Price (1-10) INC. VAT

£195.00

Part No.

QP150X150X6

Description

Fused Quartz Plate

Dimension

150mm X 150mm

Thickness

6mm

Quantity

Unit Price (1-10) INC. VAT

£210.00

Part No.

QP150X150X10

Description

Fused Quartz Plate

Dimension

150mm X 150mm

Thickness

10mm

Quantity

Unit Price (1-10) INC. VAT

£325.00

Part No.

  • QP100X100X1

Description

  • Fused Quartz Plate

Diameter

  • 100mm X 100mm

Thickness

  • 1mm

Quantity

Unit Price (1-10) INC. VAT

£79.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • QP100X100X2

Description

  • Fused Quartz Plate

Diameter

  • 100mm X 100mm

Thickness

  • 2mm

Quantity

Unit Price (1-10) INC. VAT

£76.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • QP100X100X3

Description

  • Fused Quartz Plate

Diameter

  • 100mm X 100mm

Thickness

  • 3mm

Quantity

Unit Price (1-10) INC. VAT

£80.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • QP10X10X1

Description

  • Fused Quartz Plate

Diameter

  • 10mm X 10mm

Thickness

  • 1mm

Quantity

Unit Price (1-10) INC. VAT

£7.90

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • QP12X12X1

Description

  • Fused Quartz Plate

Diameter

  • 12mm X 12mm

Thickness

  • 1mm

Quantity

Unit Price (1-10) INC. VAT

£8.10

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • QP150X150X1

Description

  • Fused Quartz Plate

Diameter

  • 150mm X 150mm

Thickness

  • 1mm

Quantity

Unit Price (1-10) INC. VAT

£112.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • QP150X150X10

Description

  • Fused Quartz Plate

Diameter

  • 150mm X 150mm

Thickness

  • 10mm

Quantity

Unit Price (1-10) INC. VAT

£325.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • QP150X150X2

Description

  • Fused Quartz Plate

Diameter

  • 150mm X 150mm

Thickness

  • 2mm

Quantity

Unit Price (1-10) INC. VAT

£100.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • QP150X150X3

Description

  • Fused Quartz Plate

Diameter

  • 150mm X 150mm

Thickness

  • 3mm

Quantity

Unit Price (1-10) INC. VAT

£119.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • QP150X150X4

Description

  • Fused Quartz Plate

Diameter

  • 150mm X 150mm

Thickness

  • 4mm

Quantity

Unit Price (1-10) INC. VAT

£160.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • QP150X150X5

Description

  • Fused Quartz Plate

Diameter

  • 150mm X 150mm

Thickness

  • 5mm

Quantity

Unit Price (1-10) INC. VAT

£195.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • QP150X150X6

Description

  • Fused Quartz Plate

Diameter

  • 150mm X 150mm

Thickness

  • 6mm

Quantity

Unit Price (1-10) INC. VAT

£210.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • QP15X15X1

Description

  • Fused Quartz Plate

Diameter

  • 15mm X 15mm

Thickness

  • 1mm

Quantity

Unit Price (1-10) INC. VAT

£8.50

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • QP20X20X1

Description

  • Fused Quartz Plate

Diameter

  • 20mm X 20mm

Thickness

  • 1mm

Quantity

Unit Price (1-10) INC. VAT

£9.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • QP25X25X1

Description

  • Fused Quartz Plate

Diameter

  • 25mm X 25mm

Thickness

  • 1mm

Quantity

Unit Price (1-10) INC. VAT

£9.20

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF

Part No.

  • QP25X25X2

Description

  • Fused Quartz Plate

Diameter

  • 25mm X 25mm

Thickness

  • 2mm

Quantity

Unit Price (1-10) INC. VAT

£14.00

* You have selected 10+ stock parts. Please add to quote for discount pricing over 10+ and volume/OEM quantities.

Download Datasheet PDF
